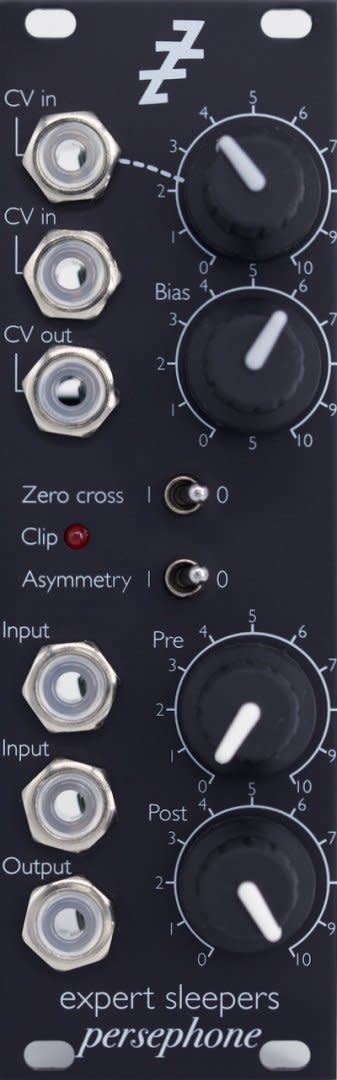

Expert Sleepers Persephone

$189.00
Out of stock
Product number: CV4081

VCA with Overdrive

  • +12V 33mA
    -12V 26mA
    +5V 0mA
    Width 8HP
    Depth 37mm

Description

VCA with Overdrive

Persephone' is a VCA (Voltage Controlled Amplifier) using a discrete JFET as the gain element. The JFET can be tastefully (or violently) overdriven for saturation/distortion effects. It also includes a zero-crossing detector, which can be used to restrict gain changes to zeros in the audio waveform, preventing clicks and pops that can occur with very fast envelopes, especially on lower pitched sounds. In fact, with the zero-crossing circuit engaged, you can use a simple gate as the CV input without clicks. The module's signal and CV paths are 100% analogue (there is a little discrete logic involved in the zero-cross circuitry).
