Flame

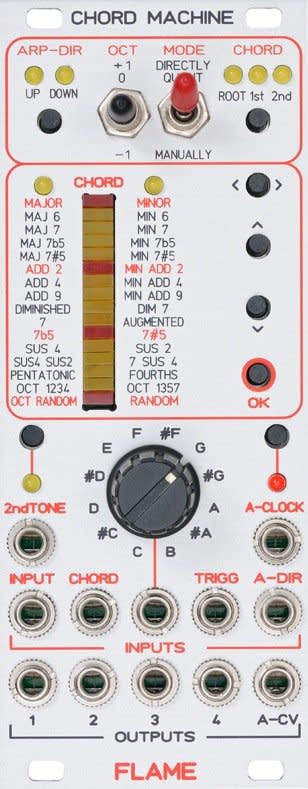

Chord Machine, USED

$275.00
Available Immediately
Product number: CV5001



Chord generator / Arpeggiator

  • +12V 130mA
    -12V 20mA
    +5V 0mA
    Width 10HP
    Depth 40mm

Description

The module generates maximum four part chords within a range of maximum 9 octaves. To your disposal are 32 chords in 2 banks which can be put additionally into the first or second inversion. As a further variation the respective second note of the set chord (CV gate 2) can be transposed down about one octave. So in total there are 192 chords to your disposal.

The module can be used for the generation of 2 -note, 3-note or 4-note chords plus a fifth arpeggio voice. The arpeggiator can be used also like an quantizer with a scale of four voices.

You have 3 operating modes for manual calibrations plus quantized or not quantized control via CV inputs. The notes of the chord can be spread sequentially via the separate arpeggio output. Via the CV input the arpeggio can be spread or be put into scale mode (quantizer). The arpeggio can be played in all three modes.

The five CV outputs are set on the 1v/ octave characteristic (via hardware). To compensate variations of connected VCO's, for each output you can separately adjust in small steps the 1v/octave spreading or an offset.
