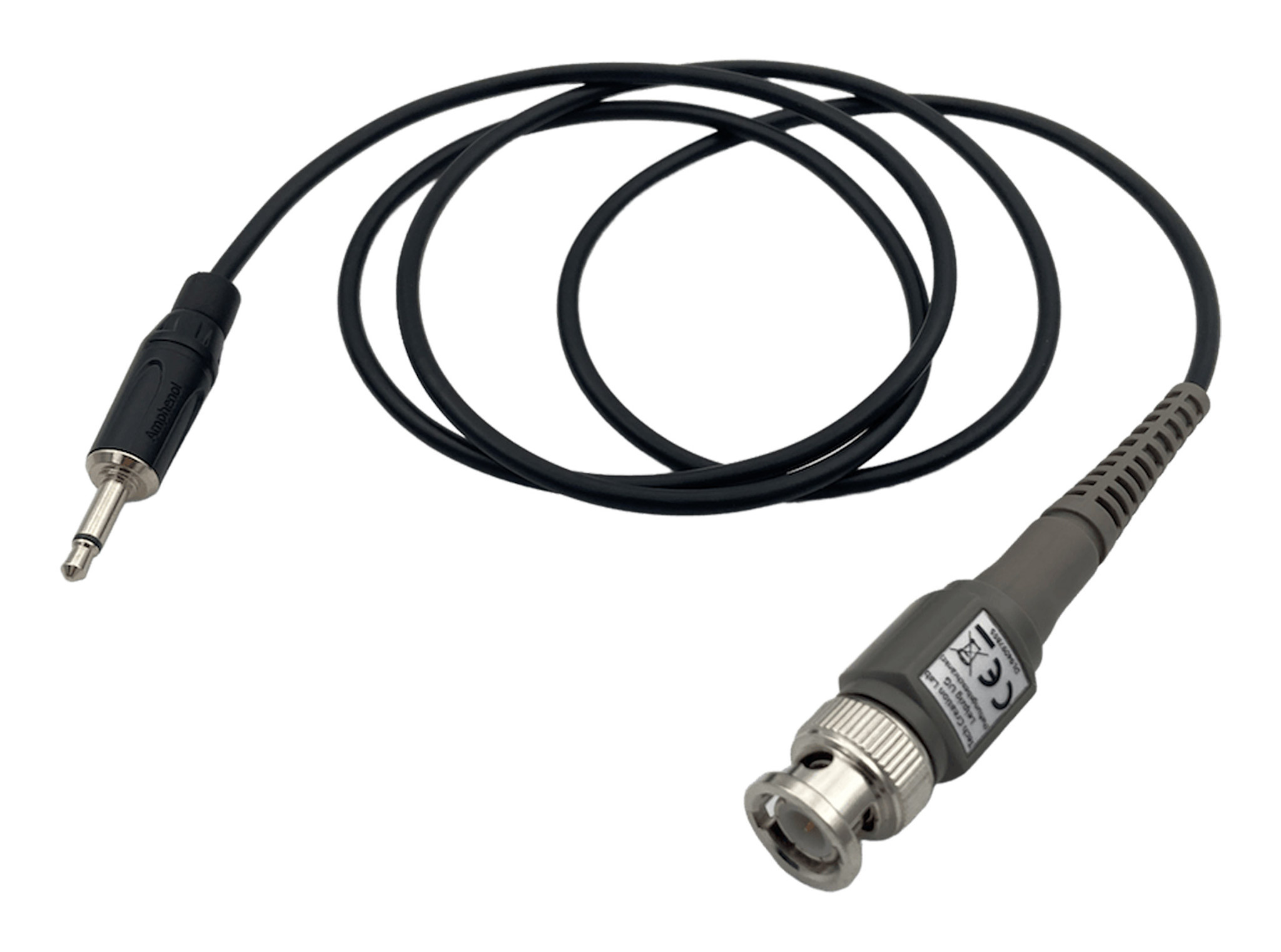

This oscilloscope probe is specially made for Eurorack or synthesizer signals. With a 3,5mm mono TS jack, it allows an easy connection between an oscilloscope and the Eurorack system. We have set the termination resistor especially for Eurorack output level to 100K to display real values. The probe can also be manually compensated.

• 100 MHz bandwidth
• 1x attenuation ratio
• 100 k termination resistance
• 70 pF ~ 120 pF input capacitance
• 24 V max. voltage range
• 100 cm cable length

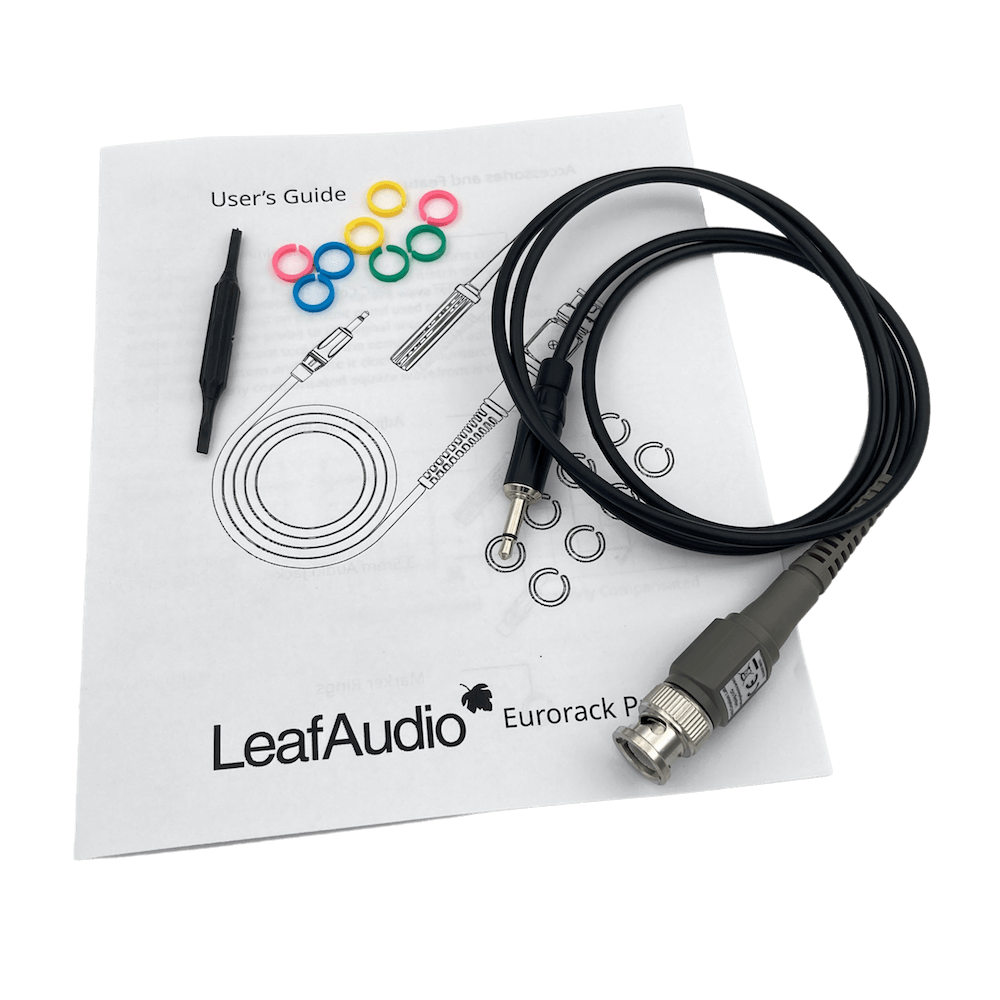

• Probe
• Adjustment tool
• Marker rings
• User Guide
